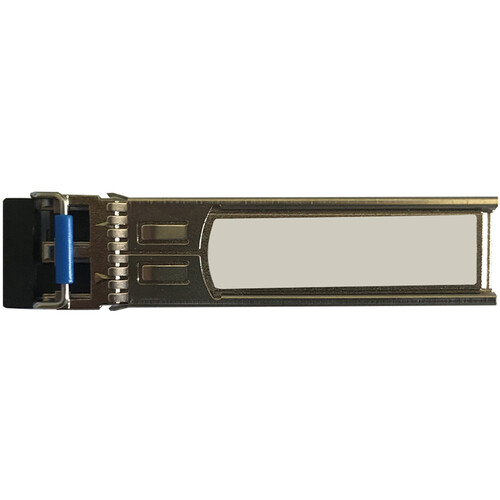

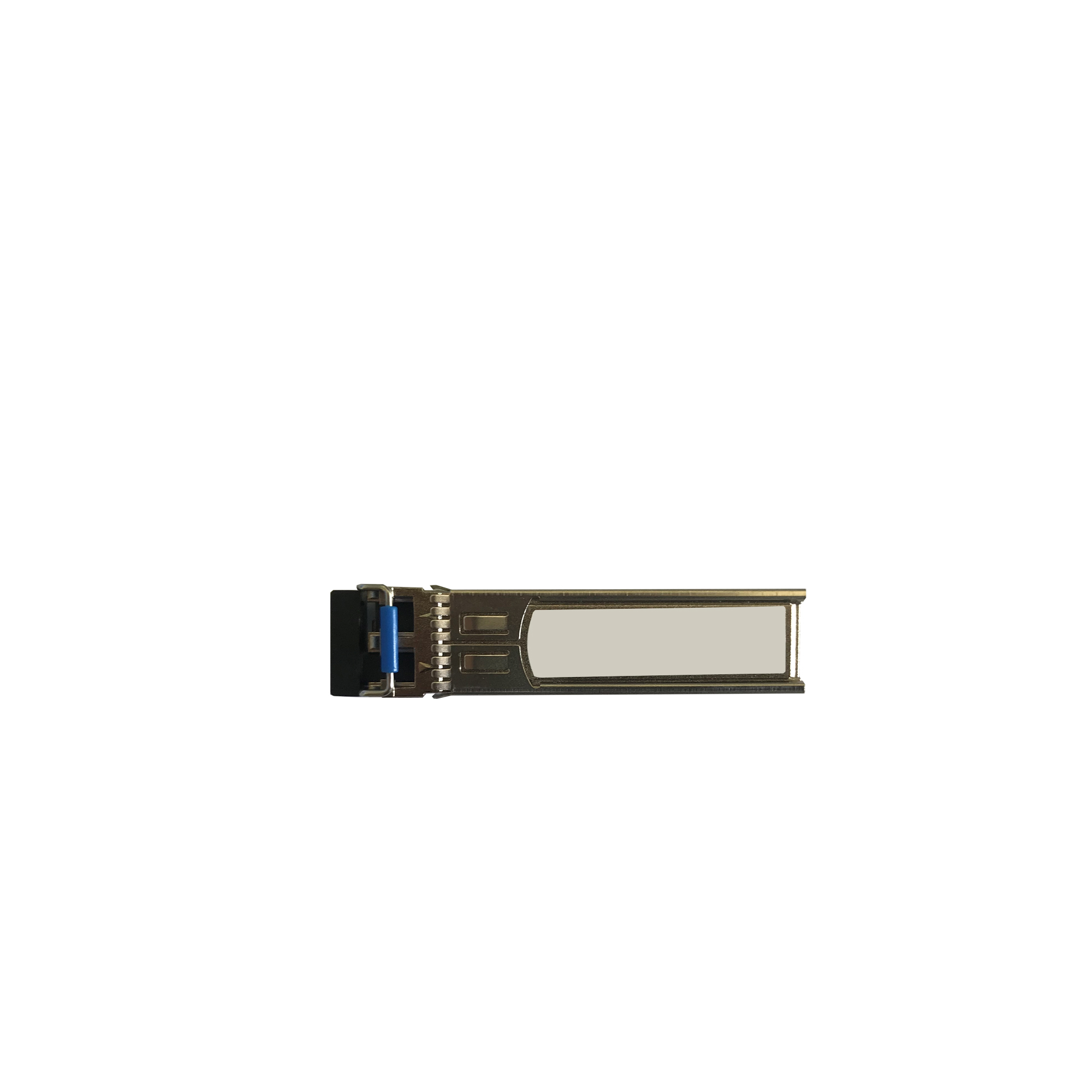

12G-SFP-LC-RX/TX

11.88G Video SFP+ Optical Transceiver(12G-SDI)

  • Operating data rate up to 11.88Gbps
  • 1310nm DFB laser transmitter and PIN receiver
  • Up to 5~10km at 11.88G on SMF transmission
  • Compliant with SD,HD,3G-SDI,6G-SDI,12G-SDI
  • Support SMPTE 424M, SMPTE 292M, SMPTE 259M SMPTE ST-2081 SMPTE ST-2082
  • Support pathological pattern transmission
  • Single 3.3V power supply
  • Operating case temperature: 0 to +70°C
  • Hot pluggable SFP+ Footprint LC Connector Interface
  • Class I laser product
